3D computer tomography

CT scanning is x-ray scanning in 3D also called computer tomography. The technology is ideal for part verification and material analysis, as both inner and outer dimensions are documented.

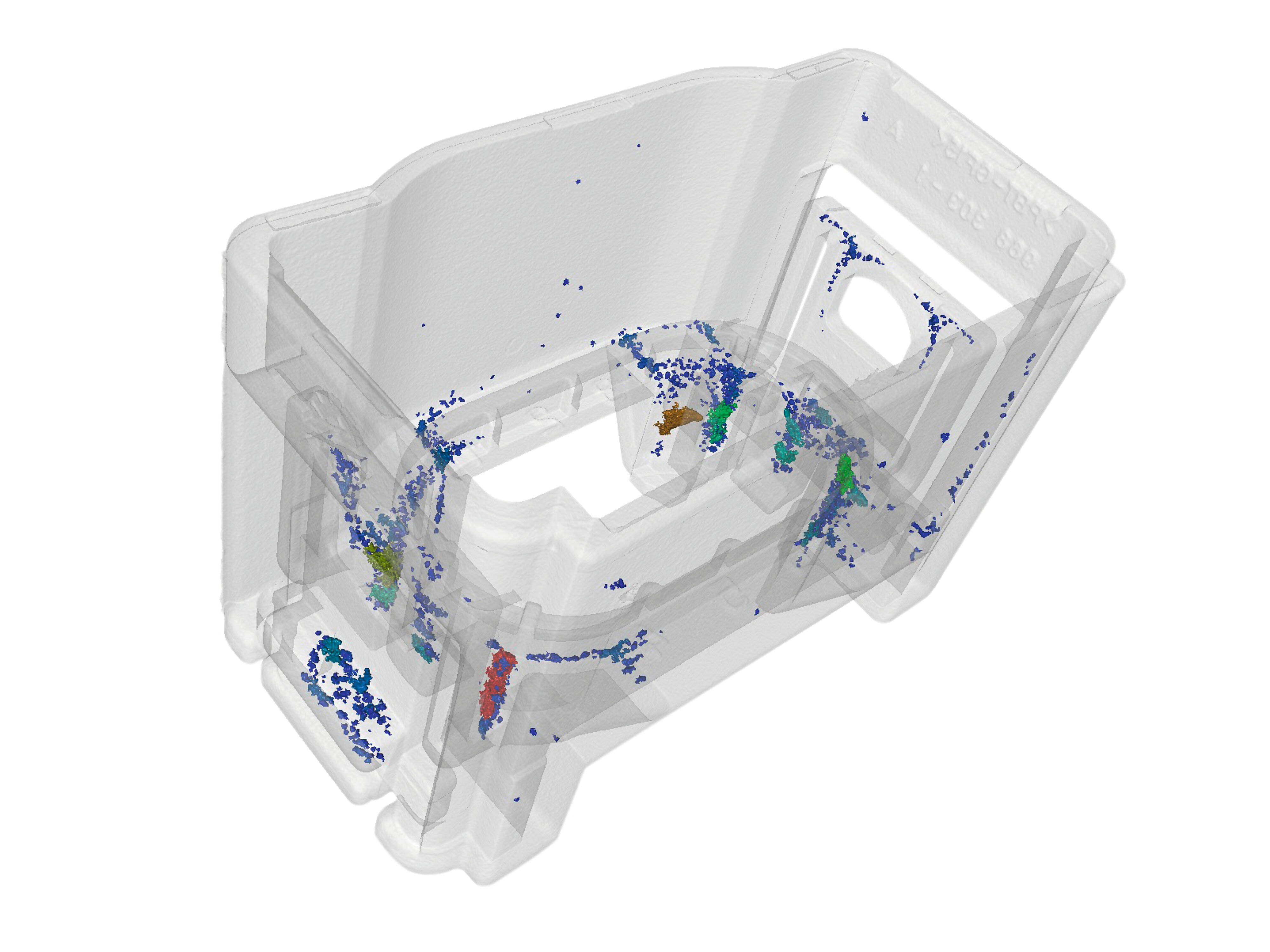

With CT scanning it is possible to inspect cavities, channels, and other hidden details as well as analyze interactions between mounted parts.

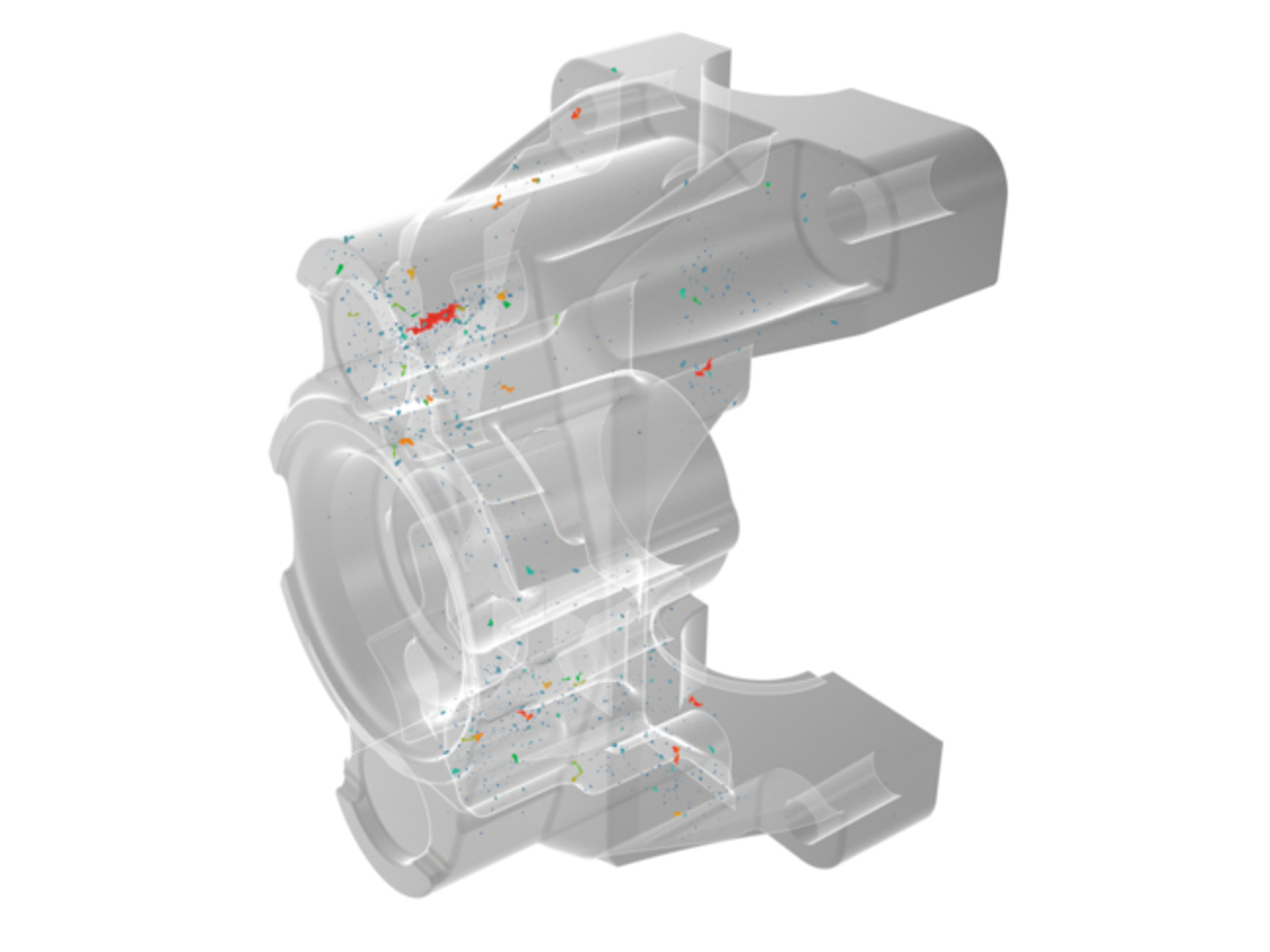

[Translate to English:] CT scanning

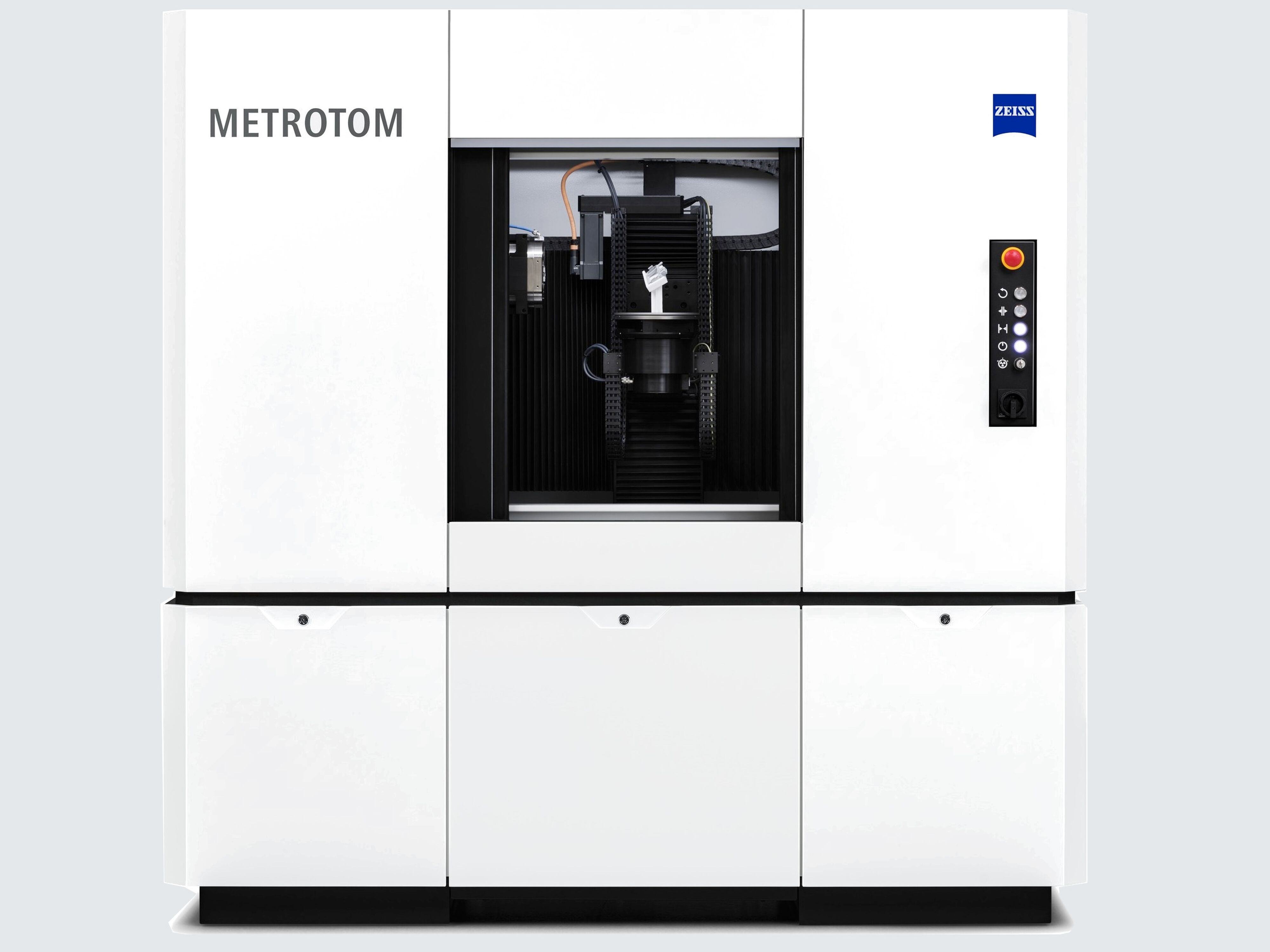

[Translate to English:] CT scanning, METROTOM 6 scout

ZEISS METROTOM til industriel CT scanning

ZEISS METROTOM for industrial CT scanning

3D computer tomography works by placing a part in front of an x-ray source which rotates 360º.

While the part is rotating, cross-sectional x-ray images are captured on a detector panel, and by using advanced software, the images are combined into a 3D model.

CT scanning is primarily used for quality control and part verification, material analysis, and analysis of electric components and assembled parts.

At Zebicon we offer services within CT scanning of smaller parts up to Ø200 mm. Furthermore, we are distributor of the CT scanner series ZEISS METROTOM.

Learn more about CT scanning

Plugs

Belden Cekan A/S uses CT scanning to document and validate parts in the development department, where they look at geometries, positioning and contact elements

Read the case story

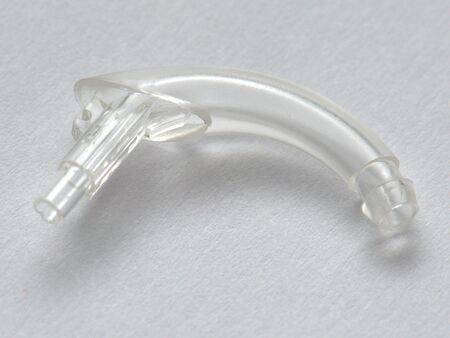

Plastic part

Oticon A/S wanted to check the quality of the component 'hook'. Zebicon used CT scanning to make a full-field surface documentation and measure the inner geometries.

Read the case story

Headset

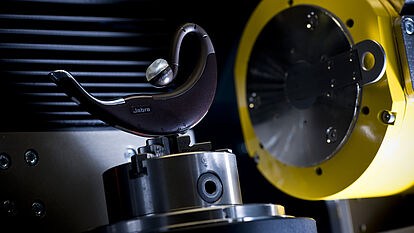

GN Netcom wanted more knowledge about the interaction between internal elements in an assembled headset, including location and connection between cables, PCB, and speaker.

Read the case story

CT measurement of multiple parts

With a ZEISS METROTOM computer tomograph all dimensions can be measured and inspected with a single scan. Additionally, it is possible to measure multiple components simultaneously in the CT scanner, depending on the size of the parts.

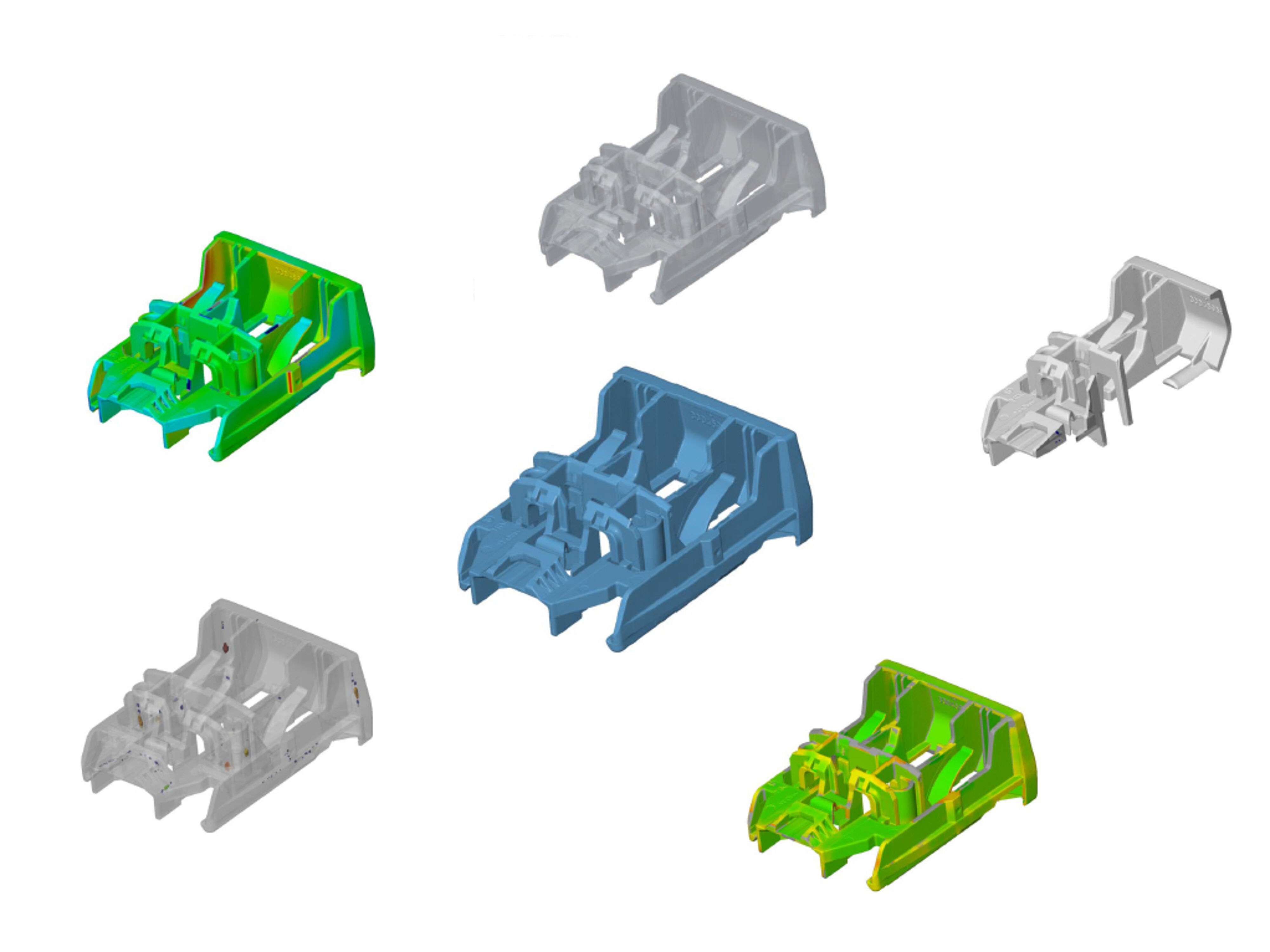

Furthermore, extra dimensions can be inspected at any given time by using the generated data to do additional analysis. By comparing the scanned data to CAD data, a color plot is made. This gives a visual overview of the part’s dimensional precision.

The particular strength of the ZEISS METROTOM is, that the measuring results are traceable and meet the current metrology standards.

[Translate to English:] CT scanning
[Translate to English:] CT scanning

Unique features of METROTOM

The ZEISS METROTOM series offer a broad variety of CT scanners. You can find systems with great usability and small footprint, as well as advanced CT scanners for the most demanding measurements.

With more than 10 years on the market, the METROTOM systems are based on a well proved technology, and is a measurement method acknowledged by the industry.

All METROTOM CT scanners are delivered with ZEISS INSPECT. This software is a powerful tool, which provides many opportunities for the following inspection and analysis.

The ZEISS METROTOM series

ZEISS METROTOM 1

ZEISS METROTOM 1 is a small and user-friendly CT scanner for measurement of plastic parts and parts of light metal. It is applicable for parts up to Ø170 mm and H 150 mm.

ZEISS METROTOM 800 130 kV

ZEISS METROTOM 800 130 kV is suitable for measurement of plastic parts with high precision. It is applicable for parts up to Ø300 mm and H 260 mm.

ZEISS METROTOM 6 scout

ZEISS METROTOM 6 scout has ultra-high resolution and is suitable for scanning of plastic parts up to Ø200 mm and H 400 mm.

ZEISS METROTOM 800 225 kV

ZEISS METROTOM 800 225 kV is suitable for quick measurement of parts produced of a more compact material. It can measure parts up to Ø300 mm and H 360 mm.

ZEISS METROTOM 1500

ZEISS METROTOM 1500 is suitable for quick scanning of large and heavy parts up to Ø615 mm, H 800 mm and 50 kg.

Specifications

  METROTOM 1 METROTOM 800 130 kV METROTOM 6 scout METROTOM 800 225 kV METROTOM 1500
Dimensions (mm) 1750 x 1820 x 870 1960 x 2190 x 1310 2130 x 2200 x 1230 2050 x 3200 x 1820 2440 x 3700 x 1810
Weight (kg) 2100 5700 4800 5000 6600
Automated axes 1 3 5 3 3
X-ray source (kV) 160 130 225 225 225
Detector panel (pix) 2560 x 2560 1536 x 1920 3008 x 2514 1024 x 1024 3072 x 3072
Min. focal spot (mm) - 0.005 0.004 0.007 0.007
Temperature control Yes Yes Yes Yes Yes
Part size (mm) Ø170, H 150 Ø300, H 360 Ø240, H 400 Ø300, H 390 Ø616, H 800
Part weight (kg) 5 5 5 5 50
