FixBase
Sandwich plates for measuring and transport
Witte FixBase work as measuring fixturing plates for mounting and transport of measuring fixtures, and as an alternative to conventional granite inspection plates.
FixBase is characterized by light weight, high rigidity, evenness and parallelism. Witte FixBase is available in different sizes and in vertical and horizontal variations. This way, both small and large components can be measured in the optimal position.

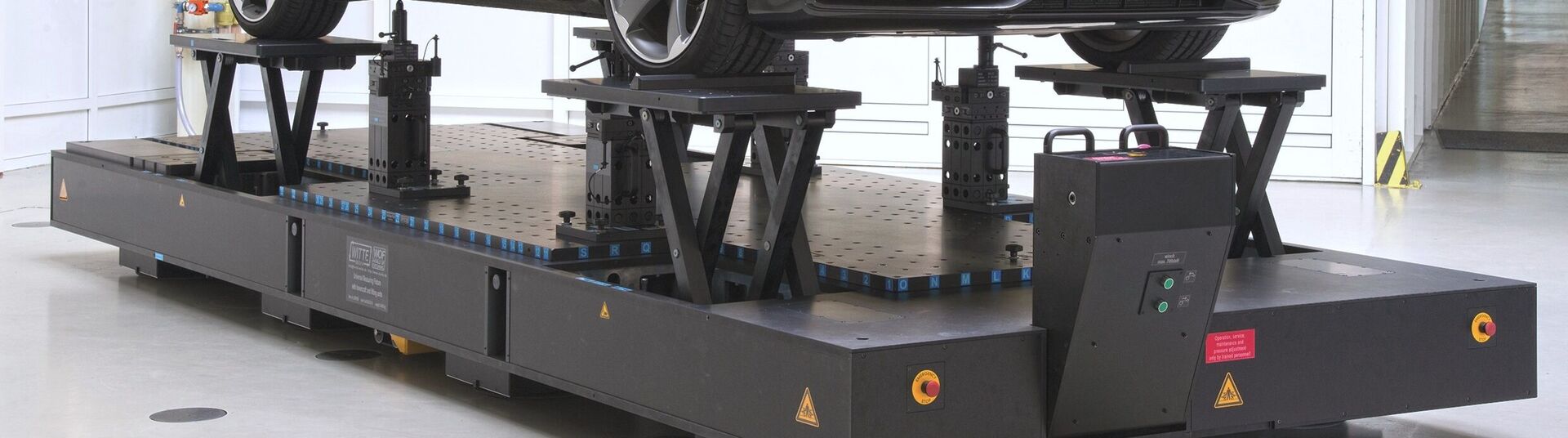

FixBase is available as both stationary and mobile solutions. Hence, the measuring fixture plates kan be used in fixed installations, as well as for internal transport. By doing so, parts can be prepared in one location, while the measurement takes place in another location. This results in faster lead times and a more efficient measurement process.
The components in the FixBase-series are compatible with other Witte products, resulting in enhanced flexibility, as existing components can be used in another context.
| FixBase | ||
|---|---|---|
| Versions | Horisontal, vertical | |
| Stationary, mobile, automated | ||
| Hovercraft, rollers | ||
| Rotatable, height adjustable | ||
| Color | Aluminum, black | |
| Dimensions | From 800x1200x100mm | |
| TO 2000x4000x300mm |
