ATOS ScanBox Series 6

Productive measurement of parts up to Ø3500 mm

ATOS ScanBox is an automated 3D metrology system from Carl Zeiss GOM Metrology based on 3D scanning and robot technology, which combines the newest technology with automation and high safety standards.

The new generation of ATOS ScanBox Series 6 consists of two systems designed for high-speed measurement of large and heavy parts such as cast parts, attached parts and tools with a size up to 3.5 m.

By combining the system with the 3D scanner ATOS 5X, which has an extremely bright light source, it allows for high productivity and high detail resolution at the same time.

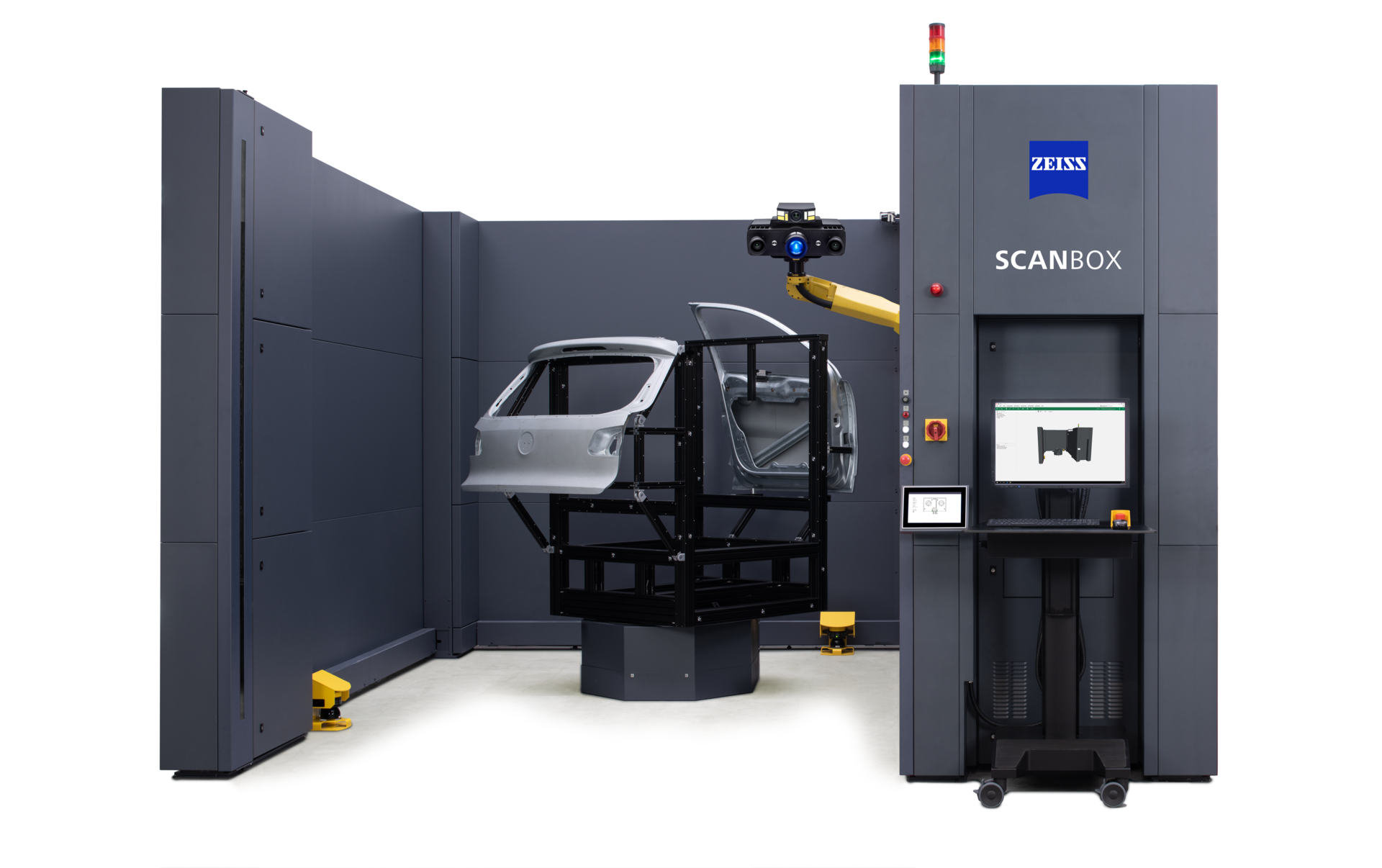

ATOS ScanBox 6135

ATOS ScanBox 6235

ATOS ScanBox 6235 has two working areas which can be operated independently of each other. This means that the 3D scanner can measure parts in one working area, while the operator prepares and loads parts on the rotation table in the other. This increases the productivity further.

ATOS ScanBox Series 6 has an open entrance, which makes it easy to load large and heavy parts by truck or crane. The working area is secured by floor and light sensors that stop the robot if there is activity in the working area.

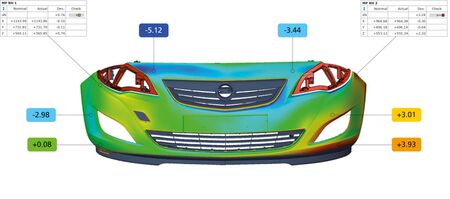

A fully automatic metrology system optimizes your part verification and quality control. When the scanning process has been programmed, the 3D scanning will run its course without operator involvement. This ensures an increased output in a shorter timespan.

An automated calibration process is integrated in the system. This provides a better operator workflow and ensures a correct setup, resulting in precise measurements each time.

In production metrology, it is important to identify, analyze, and correct quality problems as fast as possible. Here it is ideal to do quality control of multiple parts.

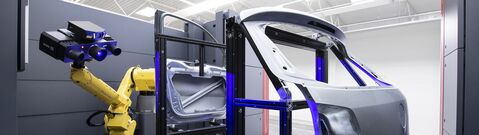

The measurement process of attached parts can be optimized further by using a multi-part fixture, as it is not necessary to change the fixture between measurements.

With the new generation of the ATOS ScanBox Series 6, the rotation table can be positioned by a touch screen. This feature makes it easier for the operator to change parts on the fixture.

  ATOS ScanBox 6135 ATOS ScanBox 6235
Dimensions 44500 × 4500 × 3250 mm 7665 × 4500 × 3250 mm
Power supply 200-500 V (3-phases, 16 A) 200-500 V (3-phases, 16 A)
Max. part size Ø3500 mm 2 × Ø3500 mm
Max. part weight 5000 kg 2 x 5000 kg
Number of scanners 1 1
Automated axes 7 8
Rotation tables 1 2
Entry Light sensor Light sensor
Entry width 2850 mm 2850 mm
Floor mounting Yes Yes
Loading concept Manual, crane, truck Manual, crane, truck
Sensor compatibility ATOS 5, ATOS 5X ATOS 5, ATOS 5X

ATOS 5

ATOS 5 is a high-end 3D scanner with a strong LED light source, which ensures high data accuracy for a variety of applications. Available for both manual and automated setup.

ATOS 5X

ATOS 5X is an industrial 3D scanner with an extra strong light source based on laser. With ATOS 5X an extremely fast scanning process of large parts is achieved. Available for automated setup.

ATOS Plus

ATOS Plus is an add-on to the ATOS scanners, and is a combination of 3D scanning and photogrammetry. Using ATOS Plus a completely automated measurement process is obtained.
